Product Description

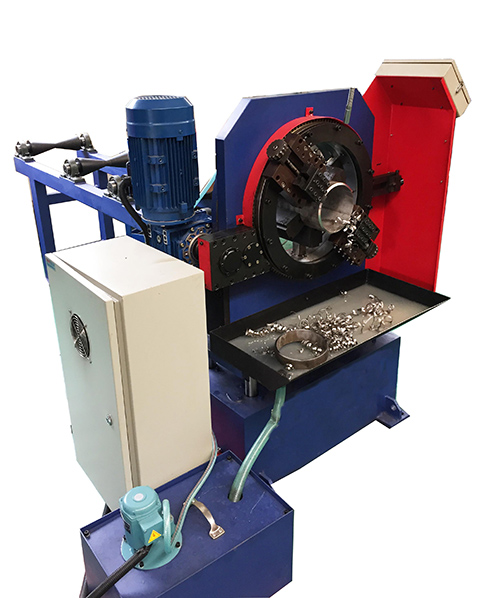

Stationary Pipe Cutting and Beveling Machine

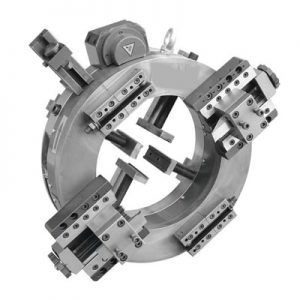

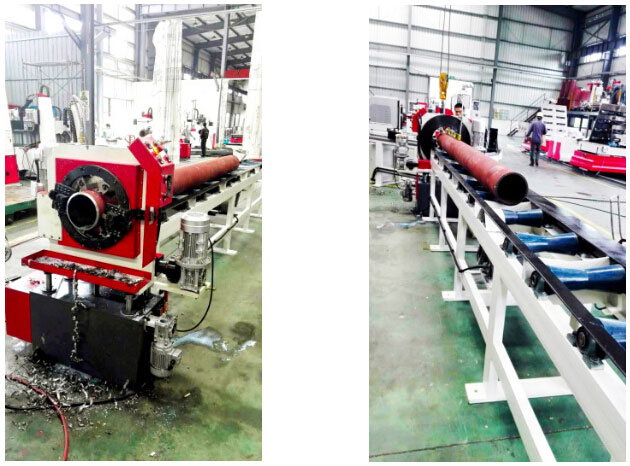

GF stationary pipe cutting and beveling machine is based and developed on our clam shell pipe cutting and beveling machine(pneumatic or hydraulic drive for onsite options). It can dramatically improve efficiency of clamping and machining speed. With optional conveying roller frame, GF stationary pipe cutting and beveling machine would be ideal solutions for huge pipes production rate in workshop or on site use.

Pipe is fixed by 4 or 6 clamp jaws and cutting tool and beveling tool rotate at the same time to cut and bevel pipe.(Orbital pipe cutting and beveling)



Specifications

Model	Pipe OD(mm)	Pipe Thickness	Motor
GF-168	30-168	Max 30mm	2kw/380V
GF-325	80-325	Max 30mm	3kw/380V
GF-711	325-711	Max 30mm	5kw/380V
GF-1016	711-1016	Max 30mm	7.5kw/380V



Customized Pipe OD range can be designed on your request.

Features:

1. Manual clamping or self-clamping systems are optionally available.
2. Lifting table with manual or automatic options.
3. Automatic water cooling system.
4. Cutter speed continuously
5. Cutting and beveling simultaneously
6. Ideal for weld joint preparation
