Product Description

Tube Squaring Machine

GFI tool series of tube squaring machine is ideal solution for tube end squaring and facing with excellent burr-free and flat finish. Its compact and lightweight design is easy to operate for welding preparation without heat-affected zone, which is also  ideal for orbital tube welding machine weld preparation.

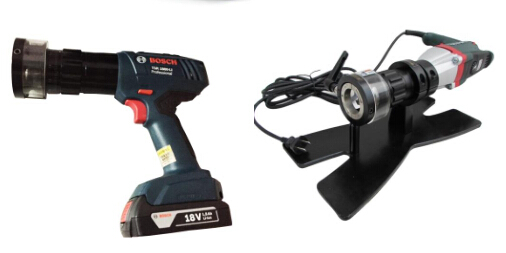

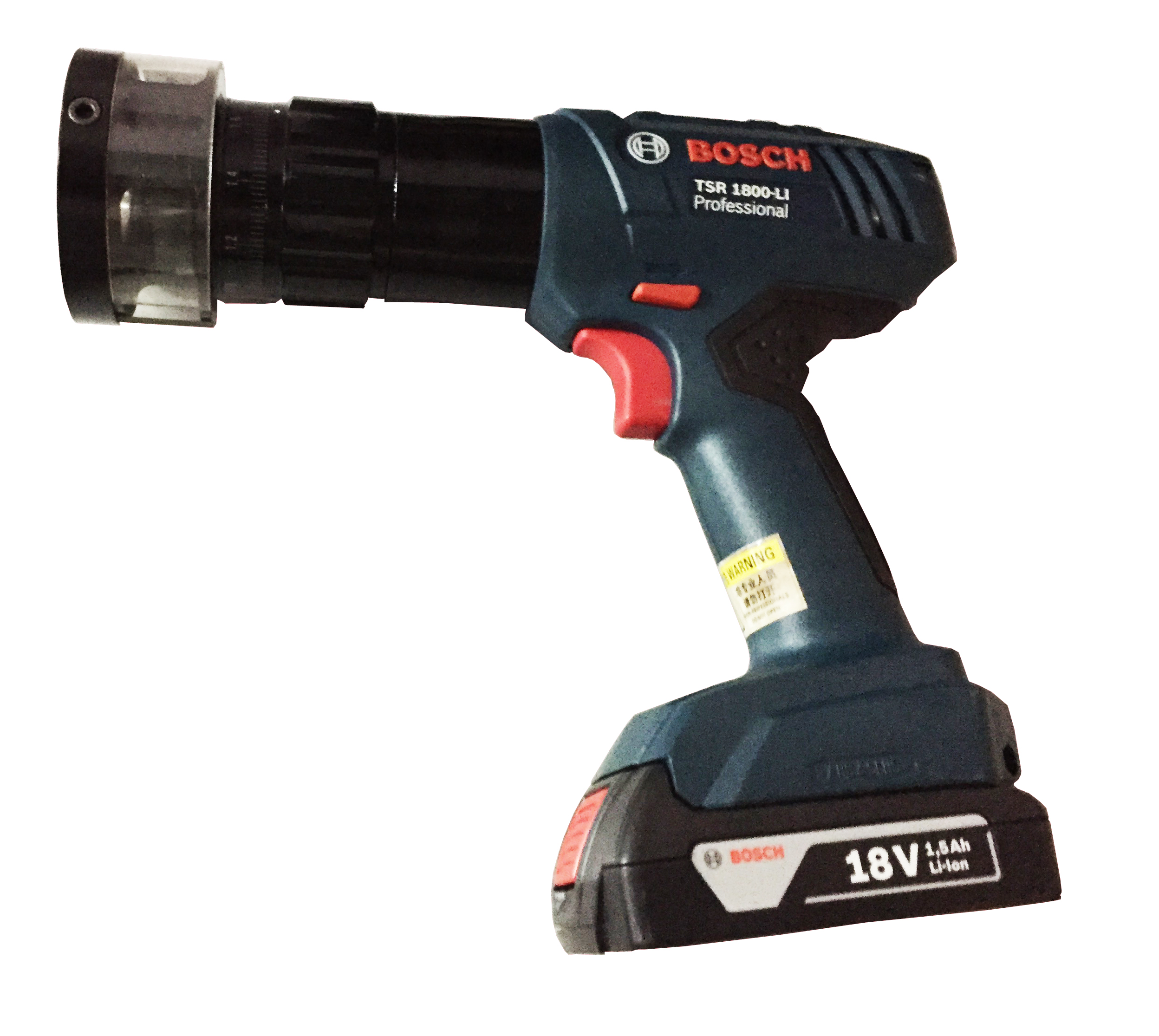

We provide both accumulator and mains as power supply on various applications.



Specification

Model	Working Range	Tube Thickness	N.W	Motor
GF-1.0	3~25.4mm (1/8-1 inches)	Max 3mm	2.0 kg	1.1kw/14.4v or 220v/50Hz
GF-1.5	3~38.1mm  (1/8-1.5 inches)	Max  4mm	2.5 kg	1.1kw/18v or 220v/50Hz
GF-2.0	3-50.8mm  (1/4-2 inches)	Max 4mm	2.8 kg	1.1kw/18v or 220v/50Hz
GF-2.5	9~63.5mm  (3/8-2.5 inches)	Max 4mm	3.5 kg	1.1kw/18v or 220v/50Hz
GF-3.0	12.7~76.2mm(1/2-3 inches)	Max 10 mm	9.5 kg	1.1kw/220v/50Hz
GF-4.5	6~115mm  (1/2-4.5 inches)	Max  10 mm	16.5 kg	1.1kw/220v/50Hz
